We supply

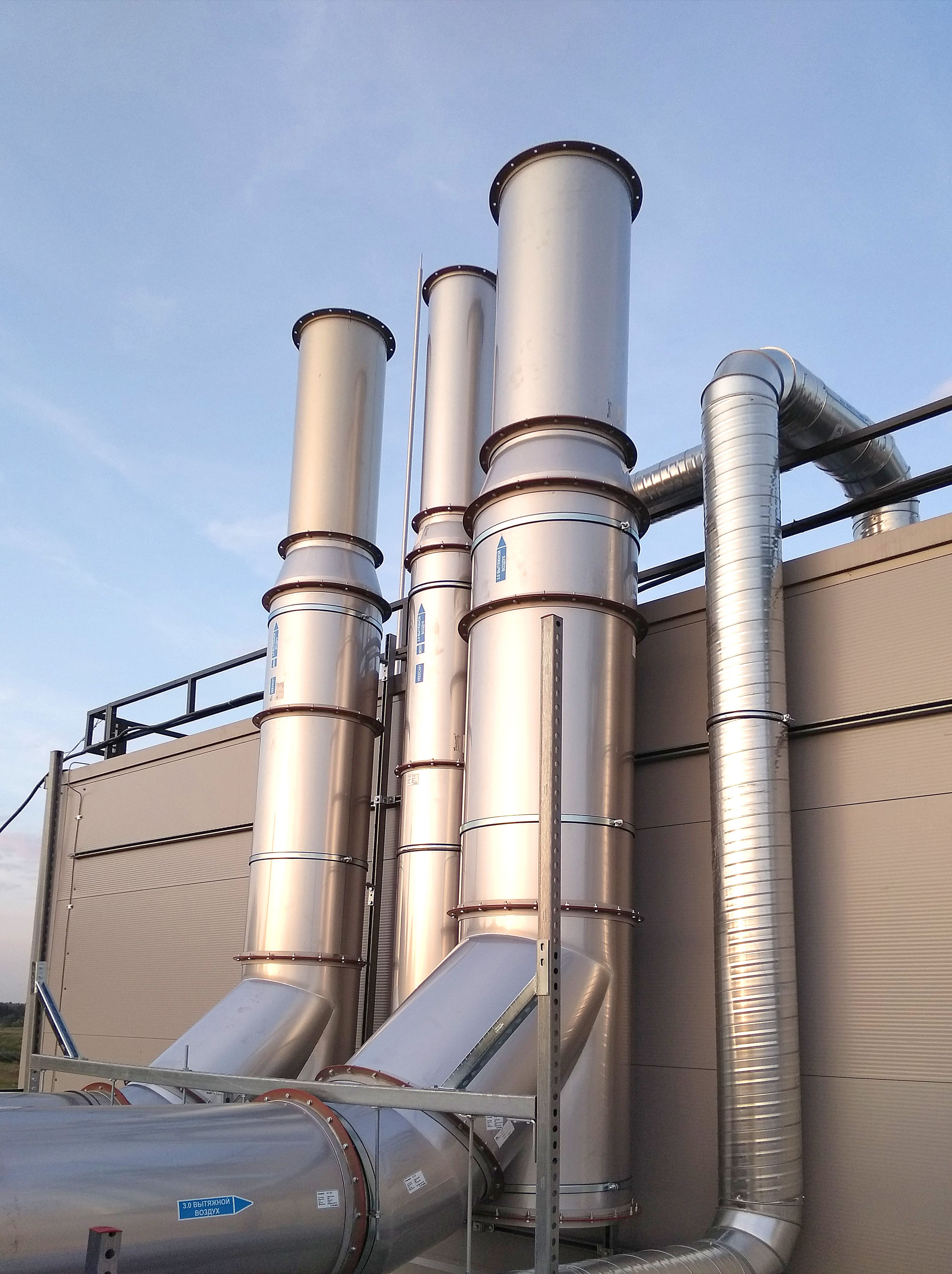

Teflon-coated air pipes

In connection with the development of the microelectronic industry, the demand for emission control systems for clean production facilities has increased sharply. Teflon-coated stainless steel air ducts are widely used instead of polyvinyl chloride or polypropylene as they comply with the requirements of fire safety and acid- resistance.
Teflon coating means a PTFE coating (Polytetrafluoroethylene), also called fluoropolymer, manufactured by Dupont and ETFE (ethylene trifluoroethylene) manufactured by Chemours.

Air ducts with teflon-coating are perfect for use in exhaust systems that remove air containing acids and alkalis fumes. The coating obtains high chemical resistance to the vast majority of substances used in the microelectronic industry. The teflon-coated air ducts have high mechanical strength which allows to use them in ventilation systems with medium- and- high pressure.

Parameters of the air pipes supplied

Air pipe material Stainless steel SUS 304 or SUS 316 with 1,0-1,5mm thickness
Inner coating Teflon (PTFE) fluoroplastic electrostatic powder coating
Leak-proofing material 100% PTFE, resistant to high temperatures, chemicals, corrosion and cracking
Chemical resistance alkalis, halogens, inorganic compounds and strong inorganic acids
Temperature range from -66°С to 149°С
Diameter or the air pipes supplied from100mm to 2000mm
Connection type Flanged

Alongside the microelectronics, air pipes with such a Teflon coating are designed for use in various industries, including:

  • Cleanrooms
  • Semiconductor industry
  • PCB manufacturing
  • Hydrocarbon process industry
  • Pharmaceuticals
  • Pulp and paper industry
  • Food industry
  • Laboratories with flammable, volatile and aggressive chemicals
  • Any industry or facility associated with the release of aggressive and flammable wastes.

The R-Technologies Company delivers Teflon-coated air pipes from major European and Taiwan manufacturers. Alongside the air pipes, we supply all the necessary network elements, including shut-off valves, back draft dempers, shaped elements, non-standard elements, elements with measuring ports and access doors.

Information for preparing a proposal

  1. Air volume
  2. Type of impurities to be removed
  3. Details sheet
