Scrubbers for gas purification
Application:
Scrubbers are designed to purify wastes from process and utility equipment containing traces of harmful gases. The main field of application is purification of wastes in microelectronic, pharmaceutical, and chemical industries.
Operation mode:
The air removed from the process equipment is transfered to the scrubber through the inlet pipe. Depending on the impurities type (hazardous gases), purification is used for:
- Decomposition based on electric heating elements (temperature up to 900С)
- Plasma based decomposition (temperature above 1000C)
Zoom
After thermal dissolution, the combustion products enter the second chamber in the device, move along the second chamber body, the polluted air passing through one or more irrigating decks which spraying a solution of chemical reagents and therefore neutralize harmful impurities.
Characteristics:
Efficiency is up to 99.99%
The exhaust air volume is up to 400 m3/h
Air temperature: +5 to +120 ° C *
Operation pressure: +/- 750 Pa *
Design:
All scrubber elements exposed to the waste air are made of corrosion-resistant materials and plastics (polypropylene, polyethylene, PVC, PVDF, etc.)

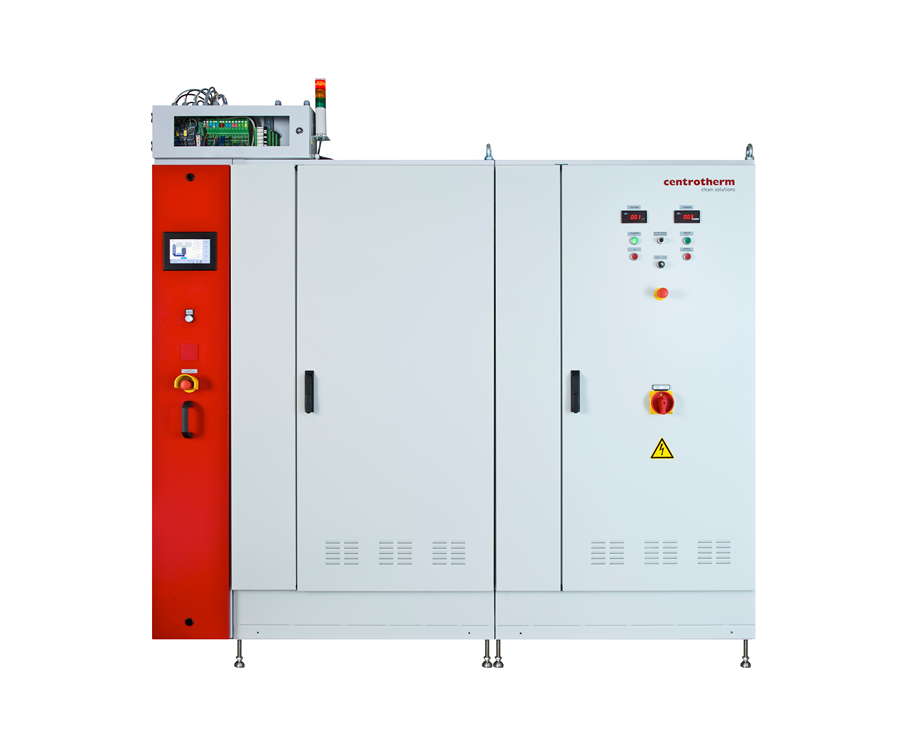

The case is made of powder coated steel. Scrubber is designed with built-in control cabinet with a 10"color display. Connection types and their location are specified at the design stage.
Explosion protection:
Scrubbers should be located outside the premises of A and B categories.
Optional accessories:
pH, conductivity measuring sensors
Chemical dosing stations and tanks
Scrubber bypass control cabinet
Information for preparing a proposal:
- Air/gas consumption
- Type of harmful substances in the removed air/gas (gas type and name)
