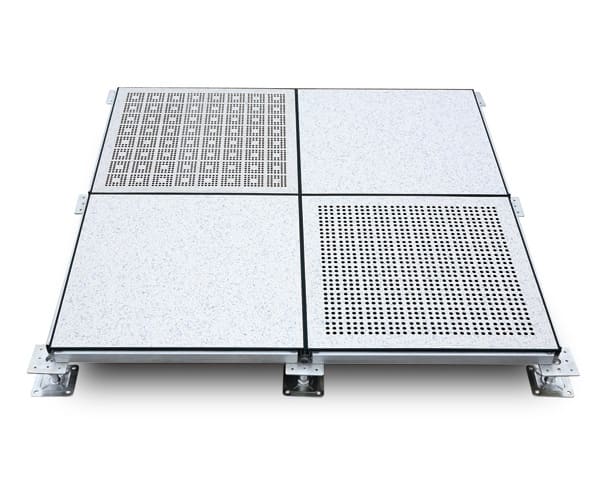

Raised floor for cleanrooms

R-Technologies supplies raised floor for cleanrooms, including solid and perforated panels, pedestals, stringers and all the necessary accessories.
Raised floor panels are made of aluminum by highly precise casting. A distinctive feature of the aluminum raised floor panels, which distinguish them from the other panel types, is the absence of dust formation during use and the absence of corrosion.
In this regard, aluminum raised floor are the best choice for high-precision enterprises, associated with high requirements for cleanliness, such as enterprises of the microelectronic and electronic industries, clean rooms.
The panel design has a complex geometry and is improved to withstand specified mechanical loads with using the least possible amount of material.

Characteristics

Characteristic Value
Material of the plate top layer Incombustible vinyl, chemically resistant, abrasion resistant
Characteristics of the plate top layer Conductivity: 10⁴-10⁶Ω
Plate Material Cast aluminum
Distributed load 750 кгf/m²
Point load 750 кгf/6,45cm²
Rolling load 200 кгf / 10000 cycles
Maximum load 1500 кгf/6,45cm² in the center
Geometric Tolerances 600+0.00mm
Thickness Tolerances ±0.10mm

Perforated panels are manufactures with a percentage of perforation of 17% or 25%.
Raised floor pedestals are made of stainless steel.
The maximum pedestal height is up to 1,500mm.

Optional accessories
Stringers for pedestals connecting
Bracings
Corner locks
View panels
Access panels
